UPC-28C
IRH-280/281
CCR-100
MiTranslator
UPC-28/28C/28C-N
The Moving iMage Technologies Accessibility Systems known around the world as the “USL” hearing and visually impaired go-to system provides the most affordable way to include those that are hard of hearing or visually impaired to the enjoyment of the movies or any other communal event.
The backbone of the USL UPC-28 kit is the IRC- 28/28C/28C-N which transmits two channels of audio plus closed captioning data over infrared. Channel A is transmitted at 2.3MHz. Channel B is transmitted at 2.8MHz. Both carriers are frequency modulated. Channel A is normally used to carry the Hearing Impaired audio, while channel B is normally used to carry the Visually Impaired - Narrative audio.
The UPC-28C consists of the IRC-28C Emitter Panel, IRP-20 DC Power Pack, and Mounting Brackets. The IRC-28C is UL listed for compliance with IEC 60065 audio/video and similar electronic apparatus. UL file E307263.
Features:
System Part Number(s):
| A000901-001 | UPC-28, 2 Ch IR Hearing System - 300 seat 2.3/2.8MHz. Includes IRC-28 emitter panel, IRP-20 power supply, mounting brackets, window decals, and display sign. Specify NA, EU, or AU. |
| A000901-002 | UPC-28C, 2-Ch IR Hearing Sys w/CC - 300 seats 2.3/2.8MHz. Includes IRC-28C emitter panel, IRP-20 power supply, mounting brackets, window decals, and display sign. Specify NA, EU, or AU. |
| A000901-003 | UPC-28C-N, 2-Ch IR Hearing Sys w/CC - 300 seats 2.3/2.8MHz. Includes IRC-28C-N Narrow Beam emitter panel, IRP-20 power supply, mounting brackets, window decals, and display sign. Universal Power Supply, NA power cord included. |
Component Part Number(s):
| A000901-101 | IRC-28 Emitter Panel for UPC-28 system. |
| A000901-102 | IRC-28C Emitter Panel for UPC-28C system. |
| A000901-103 | IRC-28C-N Narrow Beam Emitter Panel for UPC-28C-N system. |
*IRP-20 power supply not included, must order separately.
Accessories and Options:
| B000901-001 | IRP-20 Power Supply for UPC Series. NA. |
| B000901-011 | IRP-20 - 3 3A Power Supply for UPC Series. NA. |
| B000901-002 | IRP-20 Power Supply for UPC Series. EU. |
| B000901-021 | IRP-20 - 3 3A Power Supply for UPC Series. EU. |
| B000901-003 | IRP-20 Power Supply for UPC Series. AU. |
| B000901-031 | IRP-20 - 3 3A Power Supply for UPC Series. AU. |
| A000930-001 | ALD: KIT, BOX OFFICE/LOBBY SIGNAGE KIT. |
| A000903-001 | IRC WIRING KIT, NETWORK, POWER, SIGNAL. |
The Moving iMage Technologies IRH-280i/281i are two-channel infrared (IR) Headphones for HI (Hearing Impaired) and VI-N (Visually Impaired Narrative) audio. The IRH-280i/281i headsets receive “Hearing Impaired” audio (dialog-centric audio at a user-adjustable loudness) and “Audio Description” audio (formerly Visually Impaired - Narrative description of the movie action to aid visually impaired individuals). The IRH-280i/281i are powered by two AAA batteries to receive infrared signals carrying the HI audio at 2.3 MHz and the AD signal at 2.8 MHz.
The IRH-280i/281i headsets receive “Hearing Impaired” audio (dialog-centric audio at a user-adjustable loudness) and “Audio Description” audio (formerly Visually Impaired –Narrative, a description of the movie action to aid visually impaired individuals) from the IRC panels over infrared to delivering high-quality sound to ensure maximum intelligibility for the hearing and visually impaired. If left on, and the headsets are not receiving a signal, the headsets will shut OFF after 5 minutes.
The IRH-280i headphones include a channel switch that allows the user to select to hear either the film soundtrack (HI) or descriptive narration (VI-N) through both earcups. The IRH-281i headphones have individual volume controls for each channel, allowing the user to mix HI and VI-N to both ears at the same time.
Features:
Part Number(s):
A000920-001 IRH-280i 2Ch. Headset Receiver with channel A/B Switch. Includes two AAA batteries.
A000920-002 IRH-281i 2Ch. Headset Receiver with Individual Volume Controls. Includes two AAA batteries.
Available models: CCR-100, CCR-100C, CCR-100P, CCR-100S.

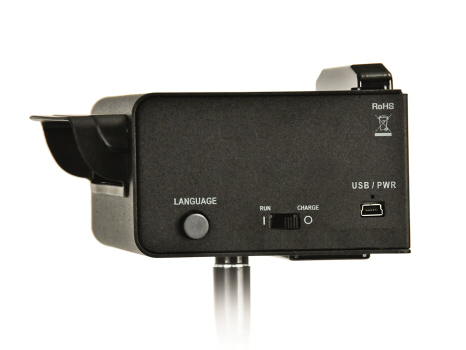

The Moving iMage Technologies Closed Captioning Receiver (CCR) is a DCI & SMPTE compliant Closed Caption Device that is attached to an angled flex arm with a base and built-in cupholder that fits into the cinema or theater seat cupholder armrest. For chairs that do not have a cupholder, the CCR-100-C utilizes a clamp in place of the cupholder. The CCR-100C and CCR0100S provide additional mountain options for locations without cupholders.

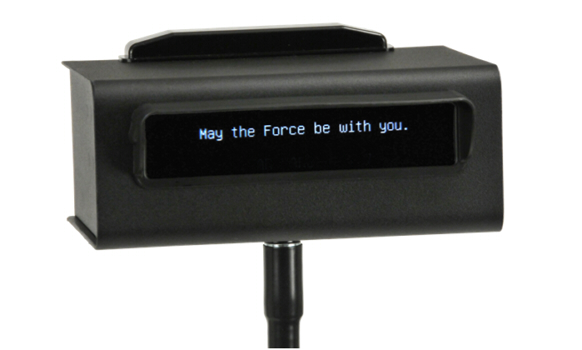

The CCR-100 seat arm mounted closed caption receiver provides the patron with a private display that is attached by an angled flex arm. The unique optics of the CCR-100 present a distant virtual image to the user so the caption and movie screen can be viewed without refocusing the eye, additionally, CCR-100 minimizes the display visibility to surrounding patrons.
Patrons may select one of up to four caption languages delivered with the movie. The unit displays the user-defined welcome message until the presentation starts. It then displays the closed captions delivered in the Digital Cinema Package (DCP). No interference! the use of infrared (IR) transmission eliminates interference from adjacent auditoriums or radio transmitters.
Features:
Part Number(s):
A000910-001 CCR-100 IR Closed Caption Receiver. Includes: Receiver Box, Twist-Lock Cup Holder Insert & Gooseneck, two AA NiMH rechargeable batteries, and USB charging cable.

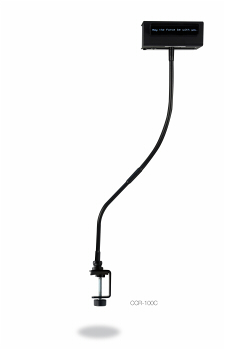

A000910-002 CCR-100C CCR-100 with clamp instead of cup holder insert.
A000910-003 CCR-100P CCR-100 with puck (for cup holder mount).
A000910-004 CCR-100S CCR-100 with shorter gooseneck - no bend extension.
A000915-001 CCH-100 CCH-100 Captioning glasses, w/battery and USB cabel.
*All CCR-100 products require UPC-28C to function
Accessories and Options:
B000902-001 CCR-CHGR CCR Battery Charger (batteries not included).
B000904-001 CCC-100 CCR Twist-Lock Cupholder.
C000910-001 200029 ALD:GOOSENECK,FIXED,CCR.
C000911-001 200010 ALD:FRESNEL LENS,CCR-100.
C000912-001 200016 ALD:VISOR,CCR.
C000913-001 CCR-BAT ALD:COVER,BATTERY,CCR.
PE00700-001 BAT-RCH-AA Two (2) AA NiMH Rechargeable Batteries. (priced individually, sold only in pairs).
IMPORTANT NOTE: This version only works with IRC-28C firmware versions 200601 and newer. Be sure the IRC-28 is updated before using this firmware on the CCR.
IMPORTANT NOTE: This version is compatible with IRC-28 versions prior to 200601. It’s the same firmware as QSC version 191410, but rebranded MiT. This should only be used if you’re unable to update the IRC-28C firmware.
Moving iMage Translator
The Moving iMage Translator provides cinemas with a convenient path to ADA compliance while enhancing the movie-going experience and driving attendance to underserved demographics. The iMage Translator allows the user to select from a wide range of available languages including descriptive narrative and sign language for personalized utilization in either visual or audio via the Epson BT-30C AR smart glasses with integrated audio.
The affordable WIFI-enabled system features include, a single transmitter for all assistive features, a common receiver for all patrons (HI, VI & LEP), optimum focal distance thru AR smart glasses, AES 256-bit encryption for copyright protection, no internet or cell signals required, intuitive remote operation, and customer smartphones/earphones can be used. To maintain hygiene standards the Epson BT-30C AR smart glasses are sanitized by a UV sterilizer for repeated use.
Create repeat patrons through ADA compliance with the Moving iMage Translator.
